Chaosheng Group has the advantage of producing large-size thin board PCBs
Release time:
2022-06-21 14:14
一、专用的大尺寸设备优势 1.1：CNC钻孔机(1200*800Mm 1.2：全自动丝印机：2600*1200Mm 1.3: 嚗光机总宽尺寸：2600*1200Mm
Advantages of Chaosheng Group in producing large-size thin board PCBs
1、 Advantages of specialized large-sized equipment
1.1: CNC drilling machine (1200 * 800Mm)
1.2: Fully automatic screen printing machine: 2600 * 1200mm
1.3: Overall width dimension of the polishing machine: 2600 * 1200mm
1.4: Total width dimension of electroplating tank equipment: 2600 * 1350Mm
1.5: Etching total width equipment width dimension: 1250mm
1.6: Effective total width dimension of compression equipment: 2180 * 750Mm
1.7: Total width dimension of laser inspection equipment: 2100Mm * 1150Mm
1.8: Overall width dimension of AOI equipment: 2600 * 1200mm
1.9: Total width dimension of testing machine equipment: 2600 * 1200mm
1.10: V-cut device width dimension "1300mm
1.11: Overall width dimension of OSPF device: 1250mm
1.12: Equipment size for the immersion gold production line: 1650 * 1150mm
1.13: Equipment size for electric nickel gold production line: 1350 * 1230Mm
1.14: Raw packaging equipment: 1600 * 1150Mm
1.15: Solder paste packaging printing equipment Equipment size: 2500 * 1200mm
1.16: SMT equipment width dimensions: 1700 * 900Mm
1.17: Reflow soldering furnace equipment size: 1700 * 1.10 meters
2、 Chaosheng Group produces large-sized double-sided boards for circuit production
2.1: Drilling machine size: 2400 * 1100mm, can drill 2350 * 1200mm
2.2: Fully automatic screen printing machine: 2200 * 1300mm
2.3: Optical equipment limited to double-layer size: 2600 * 1250mm
2.4: Electroplating tank equipment limited to double-layer size: 2300 * 1200mm
2.5: Total width dimension of etching processing line: 1300mm
2.6: Two layer size of compression equipment: 2180 * 1.20 meters
2.8: Anti welding single-sided spacing of 0.12mm
2.9: Minimum hole 0.50mm
2.10: Total width dimension of CNC equipment: 2600 * 1300mm
2.11: Total width dimension of the production testing machine equipment: 2500 * 1250Mm
2.12: Width dimension of V-CUT equipment "3000 * 1300mm
2.13: Overall width dimension of OSP equipment: 1250mm
2: 14: Equipment size for the gold deposition production line: 1500 * 1200mm
2.15: Equipment size for electric nickel gold production line: 1400 * 1200mm
2.16: Vacuum packaging equipment: 1300 * 1200mm
2.17: Solder paste equipment size: 2100 * 1100mm
2.18: SMT equipment width dimensions: 1600 * 1150Mm
2.19: Reflow soldering furnace equipment size: 1600 * 1150mm
2.20: Finished board thickness 0.12-10.0Mm ± 10%
2.21: Four wire test value ± 10%, size 1700 * 1200mm
2.22: E-SET 100% Test
3、 Chaosheng Group produces large-sized 4-80 layer buried filling materials for the production of lines, with finished product dimensions
3.1. Finished size of buried holes on floors 4-80: 1350 * 1.15 meters
3.2. Finished size of buried holes on floors 10-10: 1550 * 1.15 meters
3.3. Dimensions of HDI finished products on floors 4-8: 1250 * 1150mm
3.4: Minimum line width and spacing of 7/7mil or more
3.5: Anti welding single-sided window spacing of 0.15mm
3.6: Minimum hole 0.10mm
3.7: Finished board thickness 0.25-10.0mm ± 10%
Material: FR-4, TG150

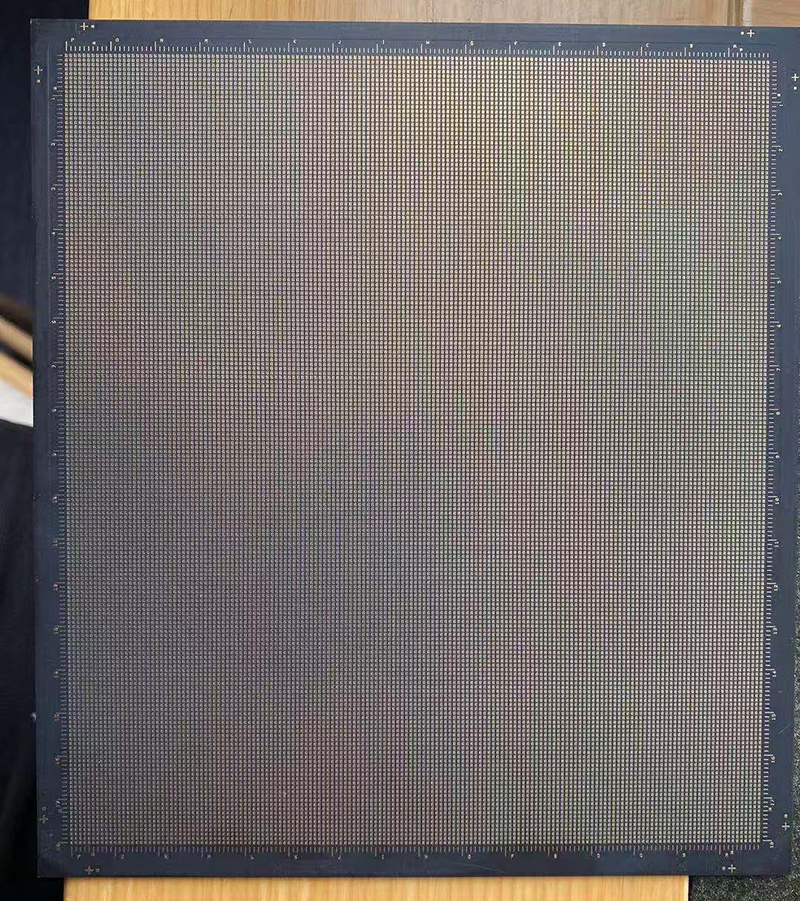

Finished product size: 1990 * 995.0mm
Number of floors: 2
Copper thickness: 35um, finished product thickness 0.15mm
