Industrial LEDIC Substrate

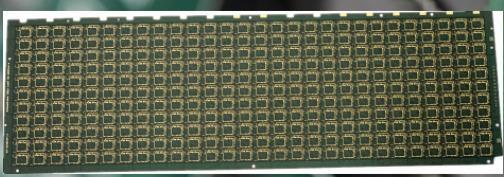

Computer IC PCB, Industrial IC PCB, Automotive IC PCB
serial number project Manufacturing capacity
1 Layers 1-80Floor
2 Maximum size of PCB 2500*1150mm
3 Maximum size of flexible FPC 500mm*100m
4 Maximum size of PCBA 1600mm*1000mm
5 Maximum size of FPCBA 500mm*100m
6 PCB Finished Thickness 0.15-12.0mm
7 Flexible FPC Finished Thickness 0.05-0.60mm
8 Finished copper thickness 12um-1075um
9 Laser Hole Minimum Finished Aperture 0.075mm
10 Minimum line width and line spacing 1.5mi/1.50mil
11 Through hole minimum finished diameter 0.15mm
12 Thickness Stack Aspect Ratio 1:35
13 by processing method VIA hole blind buried hole treatment: ink plug hole, resin plug hole, copper paste plug hole, VCP copper fill hole, silver paste plug hole, carbon oil plug hole, etc.
14 surface treatment Immersion gold, electro-nickel gold, electro-thick gold, immersion gold + OSP, electro-nickel-gold + immersion gold, electro-nickel-gold + immersion gold + OSP, electro-gold + OSP, immersion gold + gold finger, OSP + gold finger, lead-free spray Tin, lead-free spray tin + immersion gold, lead-free spray tin + gold finger, lead spray tin, OSP, immersion tin, immersion silver, electric silver
15 Main Substrate Brands Rogers, Arlon, Taconic, TP-2, Megtron, Neclo, Isola, F4B, 3M, Mitsui Group (Japan Mitsui / Mitsui グループ), Taiyao TUC, Taiguang EMC, Tenghui VT, Shengyi SY, Lianmao ITEQ, Nanya NOUYA, DuPont Kapton, Taihong Taihong, Hongren Hongren, Xin Yang Xin Yang, Nippon Stee, Teflon, Yasen Yasen, Matsushita Matsushita, Japan RCC, Japan Mitsui Mitsui Group (Japan Mitsui グループ), 3M (3M Location) in the United States, Kyocera CERADIR in Japan, Jiuhe in Taiwan, Jiuhao in Taiwan, China Porcelain in China, Huaqing Huaqing, Ai Shengda, Slitton, Kai Changde, Tongxin Tongxin, Berger Bergs, Yalong, Taiconie, etc. Taiconieta
16 Solder mask color Green, Black, Red, Yellow, White, Blue, Purple, Matte Green, Matte Black, etc.
17 test service AOI, X-Ray, withstand voltage test, short pass test, solder test, thermal shock test, functional test, high temperature and humidity test, first article tester, etc.
18 Forming method CNC shape, die punch shape, V-CUT+ molding method
19 Finished warpage ≤0.5%
20 Mechanical Bore Tolerance ≤0.025mm
21 Finished warpage ≤0.5%
22 MiNiLED Minimum PAD 0.065mm/0.065mm
23 Thermal Conductivity ≧8W
24 The highest pressure 2500Pa
25 High carbon resistance value and tolerance ≧100→15000Ω±20%
26 Impedance tolerance ≤5→8%Ω
27 IC carrier substrate series Minimum line width and line spacing 20um/20u
FAQ
Question point answer
Q: What information does the PCB need to provide? CEGSATE: It is necessary to provide the Gberber file for making PCB, the product process production instructions, such as material requirements, surface treatment requirements, finished product thickness requirements, PCB stack structure diagrams for high-end products, copper thickness requirements for each layer, sample quantity requirements, and bulk order requirements , product application fields and other related information
Q: What information does PCBA need to provide? CEGSATE: It is necessary to provide BOM report (requires the brand, specification and model of the component), X, Y coordinate number of PCBA components, and processing requirements: Do you need us to purchase components? Or customer-supplied components? Is software burning required? How much is required? Details such as what is the monthly demand.
Q: Are my documents safe? CEGSATE: Your documents are very secure and we protect intellectual property for our clients throughout the process. All files provided by customers will never be shared with any third party.
Q: How much is the MOQ? CESGATE: There is no MOQ in POE. We have the flexibility to handle both small and large batches.
Q: Do you have other services? CESGATE: We mainly focus on the procurement services of PCB+FPC production+SMT+Assembly PCBA+components; in addition, we can also provide programming, testing, software programming, wiring, shell assembly services; as well as product design, product development, software development
Q: What is your inspection method? How do you control the quality? CESGATE: In order to ensure the quality of PCB and FPC products, samples and small batches are usually detected by flying probe; the inner layer circuit passes AOI optical inspection, online AOI inspection, the finished product is 100% tested by E-SET test frame, and the appearance is fully automatic Finished product inspection equipment 100% full inspection and FQC 100% full inspection, PCBA automatic optical inspection (AOI), BGA parts X-Ray 100% ray inspection, first article inspection (FAI), PCBA products that require programming software, according to product functional requirements, 100% full test through the finished test frame, etc.
Our company has advanced production equipment and rich experience, which can meet customers' needs for various IC PCBs. We not only provide various surface treatment and testing services, but also customize PCB and PCBA products with special requirements according to customer requirements. We are committed to providing customers with high-quality, high-performance products and protecting their intellectual property throughout the entire production process. We have a flexible production mode that can handle both small and large orders to meet the different needs of our customers. In addition to PCB and PCBA production services, we also provide a range of other services, including programming, testing, software programming, wiring, housing assembly, and more. Our testing methods and quality control measures are strict to ensure that every product meets the requirements and standards of our customers. We are committed to becoming a trusted partner for our customers and providing them with one-stop solutions. If you have any needs or questions, please feel free to contact us and we will be happy to provide you with our services.
