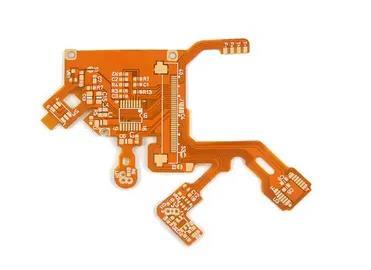

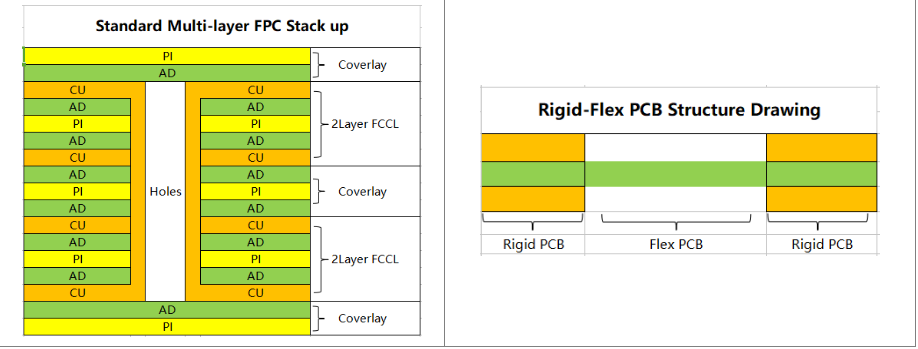

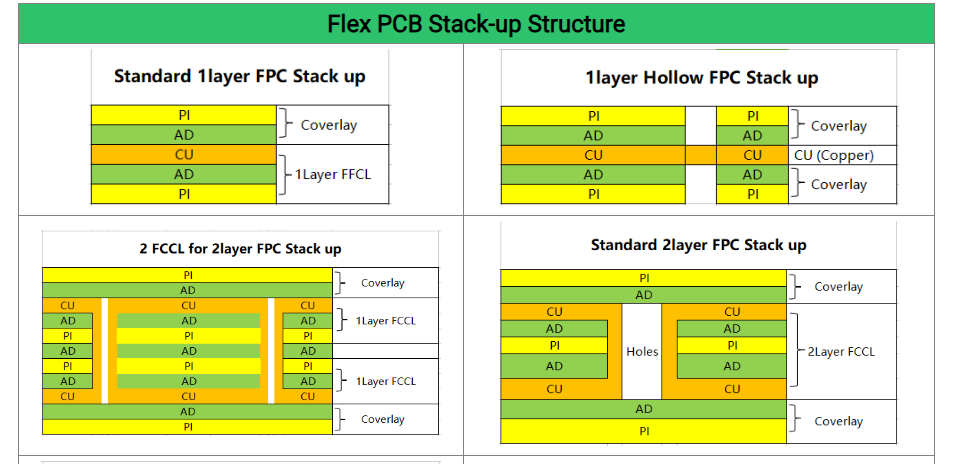

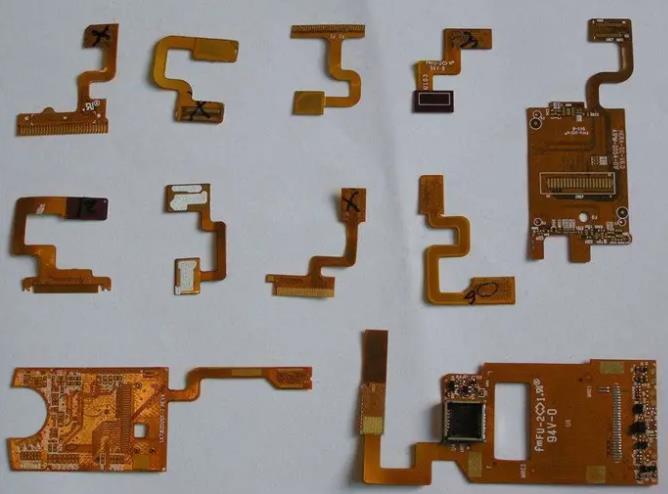

Multi layer flexible FPC
key word:
Product Description
Product field: Fingerprint product series;
Layers: 8LFPC
Plate thickness 0.20mm ± 10%; Size: 25 * 25mm
Process structure: DuPont PI, minimum hole 0.200mm, copper thickness 1OZ, line width and spacing 3/3mil
Surface treatment: Electric gold 1u"
| Main Product Structure of Chaosheng Group Company 2-80 layers of rigid circuit boards, 2-50 layers of flexible circuit boards and PCBA production Chaosheng Group Company mainly produces product categories High end double-sided, multi-layer, flexible, high-frequency, HDI interconnect, metal based, high thermal conductivity metal based, ceramic, cut in metal based, cut in buried capacitor, cut in thick copper buried magnet, concave convex step substrate, 5G high-speed board, thick copper, thick gold, high carbon resistance, double-sided multi-layer MiNiLED, MiNiHDILED, MiNiOLED, IC carrier substrate, roll to roll FPC, long FPC, large-sized printed circuit board, halogen-free material, high-frequency material, high-speed material, metal material, environmentally friendly circuit board, blind buried hole circuit board, high thermal conductivity aluminum based, thermoelectric separation copper based, PDU busbar, iron-based and metal based (core) mixed pressure plate, embedded copper buried copper. Buried resistance buried capacitance buried ceramic bead board, ultra-thin BT board, ceramic substrate, IC carrier board, high-frequency mixed voltage, high-speed board, differential impedance board, thick copper plate, thick gold plated board, HDI An integrated OEM and ODM production factory for Anylayer, double-sided, multi-layer, HDI FPC, soft hard combination HDI, roll to roll FPC, ultra long FPC, ultra large size PCB production and product design and development, software development, special material printed circuit boards, etc. The main application areas of PCB and PCBA products of Chaosheng Group Company Communication terminals, communication stations, electronic communication, fiber optics, optical modules, backlight sources, chip systems, communication equipment, communication instruments, computers, intelligent devices, intelligent control, system control, industrial power control, industrial equipment, testing instruments, testing instruments, SD cards, SG cards, mobile phones, computers, various antennas, radars, automobiles, light sources, resistors, music equipment, playback equipment, banking equipment, medical instruments, medical equipment, aerospace, aviation, military, LED, OLED, OLCD power control power supply, industrial power supply, communication power supply, automotive power supply, office equipment, digital products, computers and other application fields; The main application areas of flexible circuit boards (FPC) and FPCA products of Chaosheng Group Company Hard drives, printers, fax machines, scanners, sensors, mobile phones, connectors, modules, walkie talkie antenna cards, high-end cameras, digital cameras, laser heads, CDs, medical devices, instruments, drives, automobiles, automotive instruments, automotive drive disks, drivers, optical drives, medical devices, medical equipment, backlight sources, modules, banking equipment, industrial instruments, LED light strips, military, aviation, aerospace, national defense and other product fields. |
|||||||||||||||
| Serial Number | Project | Manufacturing capability | |||||||||||||
| 1 | Layers | Floors 1-80 | |||||||||||||
| 2 | Maximum size of PCB | 2500*1150mm | |||||||||||||
| 3 | Maximum size of flexible FPC | 500mm*100m | |||||||||||||
| 4 | Maximum size of PCBA | 1600mm*1000mm | |||||||||||||
| 5 | FPCBA maximum size | 500mm*100m | |||||||||||||
| 6 | PCB finished product thickness | 0.15-12.0mm | |||||||||||||
| 7 | Thickness of flexible FPC finished product | 0.05-0.60mm | |||||||||||||
| 8 | Finished copper thickness | 12um-1075um | |||||||||||||
| 9 | Minimum finished aperture of laser hole | 0.075mm | |||||||||||||
| 10 | Minimum line width and spacing | 1.5mi/1.50mil | |||||||||||||
| 11 | Minimum finished hole diameter for through-hole | 0.15mm | |||||||||||||
| 12 | Thickness stacking aspect ratio | 1:35 | |||||||||||||
| 13 | By processing methods | VIA blind buried hole treatment: ink plug hole, resin plug hole, copper paste plug hole, VCP copper filling hole, silver paste plug hole, carbon oil plug hole, etc | |||||||||||||
| 14 | Surface Treatment | Sinking gold, electroplating nickel gold, electroplating thick gold, electroplating gold+OSP, electroplating nickel gold+sinking gold, electroplating nickel gold+sinking gold+OSP, electroplating gold+OSP, electroplating gold+gold fingers, OSP+gold fingers, lead-free tin spraying, lead-free tin spraying+sinking gold, lead-free tin spraying+gold fingers, lead tin spraying, OSP, sinking tin, sinking silver, electroplating silver | |||||||||||||
| 15 | Main substrate brands | Rogers, Arlon, Taconic, TP-2, Megtron, Neclo, Isola, F4B, 3M, Mitsui Group (Japan Mitsui/Mitsui Top), Taiyo TUC, Taiguang EMC, Tenghui VT, Shengyi SY, Lianmao ITEQ, South Asia NOUYA, DuPont Kappon, Taihong, Hongren Hongren, Xin Yang, Nippon Steel Nippon Stee, Teflon, Yasen, Matsushita, RCC, Mitsui Mitsui Group (Japan Mitsui Top), 3M (USA) 3M Location, Kyocera CERADIR, Jiuhe, Jiuhao, China Porcelain, Huaqing, Ai Shengda, Slitton, Kai Changde, Tongxin, Bergs, Yalong, Taiconieta, etc | |||||||||||||
| 16 | Solder mask color | Green, black, red, yellow, white, blue, purple, matte green, matte black, etc | |||||||||||||
| 17 | Test service | AOI、X-Ray、 Voltage withstand test, short circuit test, soldering test, thermal shock test, functional test, high temperature and high humidity test, first piece tester, etc | |||||||||||||
| 18 | Molding method | CNC shape, punch shape, V-CUT+forming method | |||||||||||||
| 19 | Finished product warpage | ≤0.5% | |||||||||||||
| 20 | Mechanical aperture tolerance | ≤0.025mm | |||||||||||||
| 21 | Finished product warpage | ≤0.5% | |||||||||||||
| 22 | MiNiLED Minimum PAD | 0.065mm/0.065mm | |||||||||||||
| 23 | Thermal conductivity | ≧8W | |||||||||||||
| 24 | Highest withstand voltage | 2500Pa | |||||||||||||
| 25 | High carbon resistance value and tolerance | ≧100→15000Ω±20% | |||||||||||||
| 26 | Impedance tolerance | ≤5→8%Ω | |||||||||||||
| 27 | IC Carrier Board Series | Minimum line width and spacing of 20um/20um | |||||||||||||
| FAQ | |||||||||||||||
| Question Point | Answer | ||||||||||||||
| Q: What information is required for PCB | CEGSATE: Gberber files for PCB production, product process instructions, such as material requirements, surface treatment requirements, finished product thickness requirements, PCB stack structure diagram for advanced products, copper thickness requirements for each layer, sample quantity requirements, batch order requirements, product application fields, and other related information are required | ||||||||||||||
| Q: What information does PCBA need to provide | CEGSATE: BOM report is required (including the brand, specifications, and model of the components), X and Y coordinate numbers of PCBA components, and processing requirements: Do we need to purchase the components on our behalf? Or customer supplied components? Do you need software burning? What is the required quantity? What is the monthly demand and other detailed information. | ||||||||||||||
| Question: Is my file secure? | CEGSATE: Your files are very secure, and we protect intellectual property rights for our clients throughout the entire process. All files provided by the customer will never be shared with any third party. | ||||||||||||||
| Q: What is the minimum order quantity? | CESGATE: There is no minimum order quantity in POE. We are able to handle small and large batches flexibly. | ||||||||||||||
| Q: Do you have any other services? | CESGATE: We mainly focus on PCB+FPC production+SMT+assembly PCBA+component procurement services; In addition, we can also provide programming, testing, software burning, wiring, and shell assembly services; And product design, product development, software development | ||||||||||||||
| Q: What is your inspection method? How do you control the quality? | CESGATE: In order to ensure the quality of PCB and FPC products, flying pin testing is usually used for samples and small batches; The inner circuit undergoes AOI optical inspection, online AOI inspection, and the finished product undergoes 100% inspection through E-SET testing rack. The appearance undergoes 100% inspection through fully automatic finished product inspection equipment and FQC. PCBA undergoes automatic optical inspection (AOI), BGA part X-Ray 100% radiographic inspection, and first article inspection (FAI). PCBA products that require software burning undergo 100% full testing through finished product testing rack according to product functional requirements. | ||||||||||||||
